Mythos 2gether Slide FMY 8362 DA R HI

340.0731.787

Mythos 2gether Slide FMY 8362 DA R HI, recirculating model. Matt black glass with a frameless design. 830mm wide. This completely integrated hob extractor is the ideal choice for any modern minimalistic kitchen. Automatice flap opening system. The hob extracts vapours using a constant flow of air pressure, discreetly reducing unwanted odours and condensation within any kitchen. The compact motor design saves space in the cabinet, and is fully waterproof, offering complete safety. 4 induction zones, 2 flexi zones.

Product Information

Product Information

EAN/UPC 7612986484106
Colour Black matt
Finish Glass
Power limitation Yes

Properties

Control N'Sense double board
Digit color White
Cooking zone 4
Waterproof Yes
Timer Yes
Booster 4
Stop&Go Yes
Color back_LEDind_display N/A
Grease filtering efficiency cl B
Type of filter Aluminium
Charcoal filter Yes

Dimensions

Commercial dimension 83X52

Installation

Filter typology Hobextractor

Energy specifications

Total power 7.4
Voltage & frequency 220-240V 50-60Hz

Product Identification

Product brand FRANKE
Product family Mythos
Model range MYTHOS 2GETHER SLIDE

Product specifications

Bridge No
Safety lock Yes
Energy efficiency class A+
Keep warm No
Melting Yes
Grill No
Blower tech.name D48
Supply cord Yes
Plug hob No plug
Coil dimension position1 (cm) 19X21
Coil dimension position2 (cm) 19X21
Coil dimension position3 (cm) 19X21
Coil dimension position4 (cm) 19X21
Child Lock Yes
Recall Yes
Heat-up Yes
Dry Function Yes
Automatic Function Yes
Auto Flap Yes
Flexi Yes
Number of Bridge 0
Number of Flexi 2
Control Ghost touch control
Induction Power Level 9+BOOST
Grease filter alarm Yes

Performance

Speed 1 2 3 BOOST1 BOOST
Flow (m³/h) 205 305 415 590 725
Press. Max (Pa) 40 90 175 350 520
Power (Watt) 30 40 80 160 270
Noise level (dBA) 42 51 59 67 71

Downloads

Fact Sheet PDF

Energy label 340.0731.787 001 PDF (3 MB)

Exploded Drawing 340.0731.787 001 PDF (2 MB)

Exploded Drawing 340.0731.787 002 PDF (5 MB)

Exploded Drawing 340.0731.787 003 PDF (3 MB)

Installation Manual 340.0731.787 001 PDF (44 MB)

Installation Manual 340.0731.787 002 PDF (83 KB)

Product Fiche 340.0731.787 001 PDF (1 MB)

Technical 3D model 340.0731.787 001 ZIP (35 MB)

Technical Drawing 340.0731.787 001 PDF (2 MB)

Technical Drawing 340.0731.787 002 PDF (4 MB)

User Manual 340.0731.787 001 PDF (12 MB)

User Manual 340.0731.787 002 PDF (12 MB)

User Manual 340.0731.787 003 PDF (10 MB)

Wiring Diagram 340.0731.787 001 PDF (397 KB)

Product Specifications

Safety lock

Melting

Grease filter alarm

3D Model

All-in-one cooking: hob and extractor

Discover a new way of cooking. An extractor integrated in your induction hob captures steam, odours and grease exactly where they are created, keeping your kitchen fresh without the need for an overhead hood. Clean lines, open space and complete freedom in kitchen design, without compromising performance. Ideal for modern kitchens.

Key Features

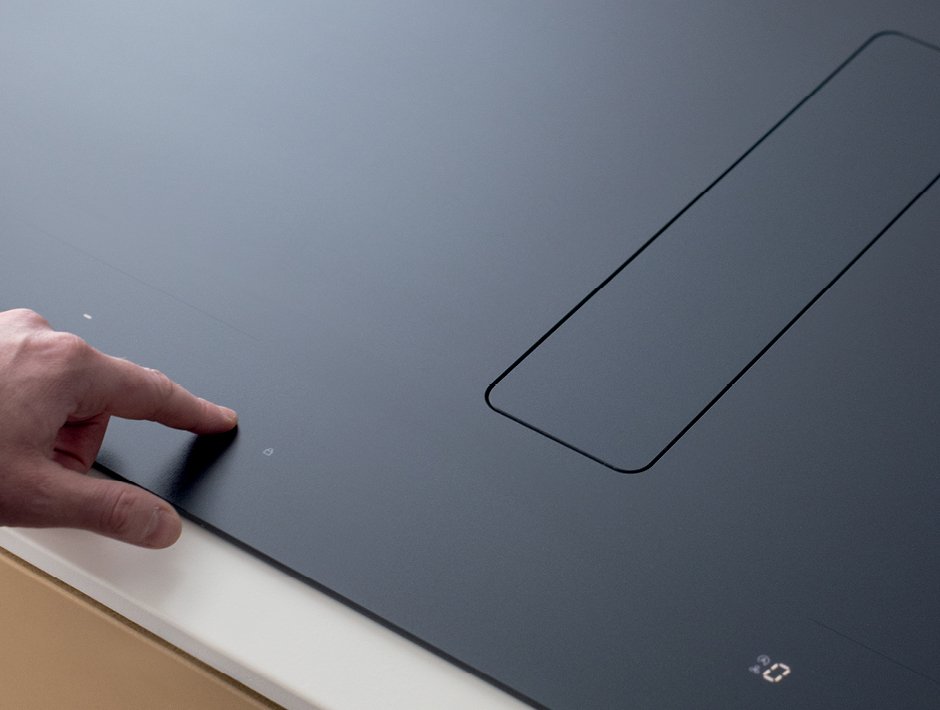

Scratch-Resistant Brushed Glass Ceramic

The innovative SCHOTT CERAN® matte line frosted glass combines a premium appearance with exceptional practicality. The surface retains its clean appearance even during everyday use, as fingerprints are barely visible. Its deep matte finish gives the induction hob with integrated extractor a sophisticated look, while enhanced scratch resistance helps preserve its premium appearance over time. Even hard particles, such as salt crystals, typically leave no noticeable marks on the surface.

Чорна матова склокераміка

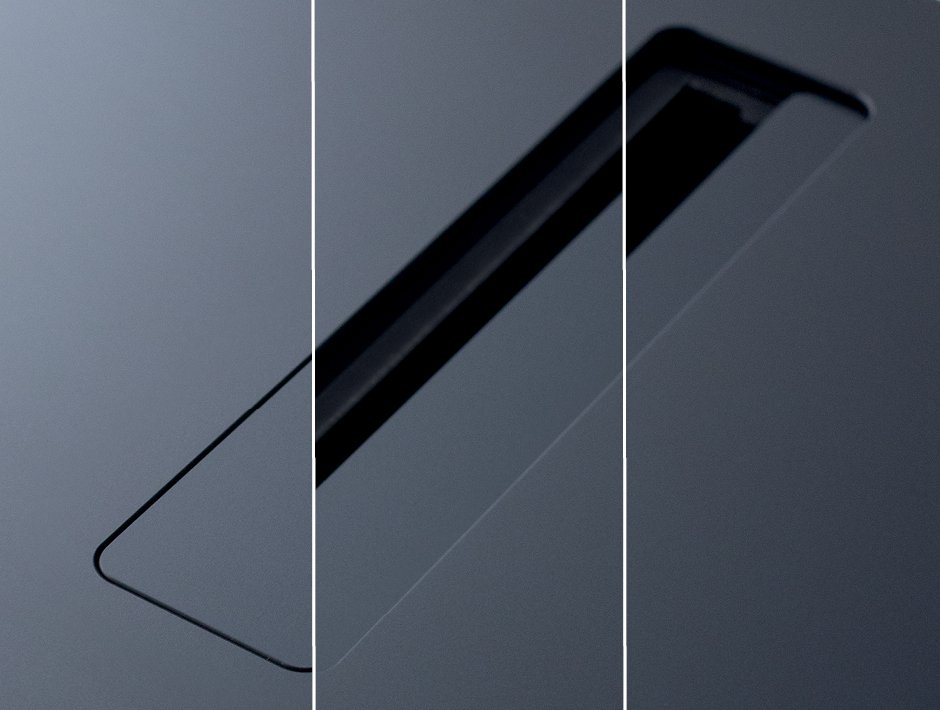

Automatic Flap Opening

No unnecessary actions are required. When the induction hob with integrated extractor is switched on, the extractor automatically starts and opens the flap, immediately beginning air extraction. Once cooking is finished, the system automatically dries the filters to remove residual moisture and then closes the flap. This transforms the hob back into a sleek, completely flat surface that is easy to keep clean.

Автоматичне відкривання заслінки витяжки

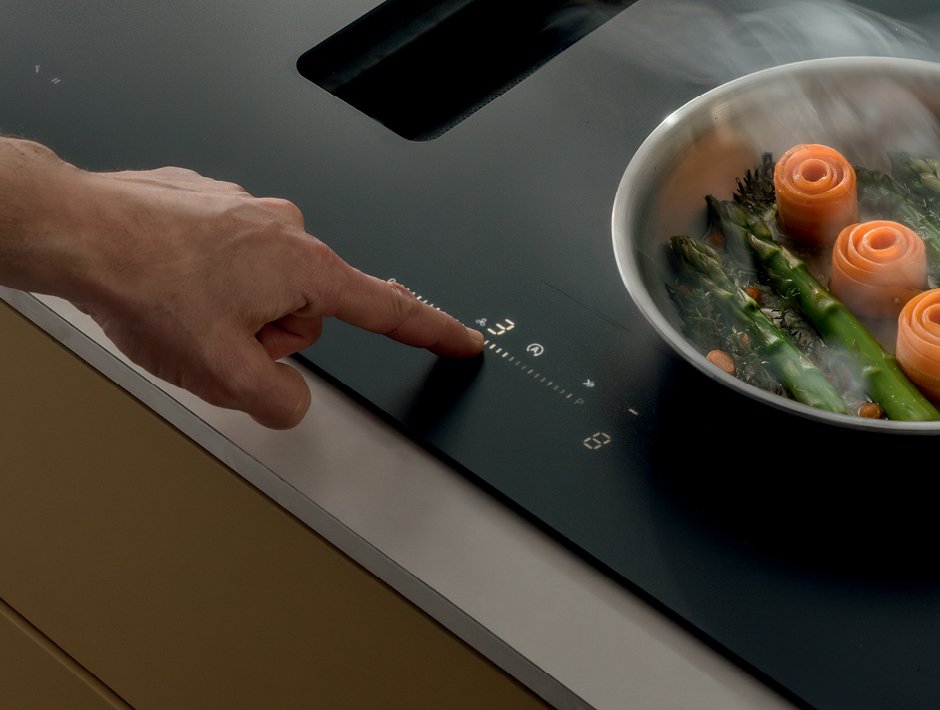

Touch Slider Control

The touch slider provides fast, precise, and intuitive control of the hob. Power levels can be adjusted with a simple tap or a smooth swipe across the control panel. Thanks to the signature Ghost Effect, only active controls are visible on the surface. When functions are not in use, the display remains hidden, creating a clean, minimalist appearance. This approach not only enhances the appliance's elegant appearance but also ensures a modern and user-friendly experience.

Чоловік витирає поверхню

Spill Protection

The integrated extractor is designed to withstand accidental liquid spills. The filter can hold approximately 200 ml of liquid, while an additional removable container accommodates a further 250 ml. Altogether, the system can retain up to 1 litre of spilled liquid. Special easy-open valves allow for quick and convenient liquid removal.

Зливання води з витяжки

Flexi Cooking Zones

The innovative Flexi induction zones automatically detect the position and size of cookware, eliminating the need to place cookware in a specific position. Simply place your pot or pan wherever it is most convenient. The technology is also ideal for larger oval or rectangular cookware, evenly distributing heat across the entire cooking area. This delivers greater efficiency, enhanced convenience, and more flexibility for different cookware sizes and cooking styles.

Приготування на об'єднаних індукційних зонах

Powerful Extraction Performance

The powerful yet quiet integrated extractor effectively maintains fresh air in the kitchen, even during intensive cooking. With three standard speed settings and two booster levels, extraction performance can be easily adapted to suit different cooking conditions.

Its advanced high-efficiency motor delivers extraction rates of up to 725 m³/h, rapidly removing steam, odours, and cooking vapours directly at their source. At the same time, the extractor achieves Energy Efficiency Class A+, combining high performance with reduced energy consumption.

Витягування пари витяжкою
