Hob Extractor

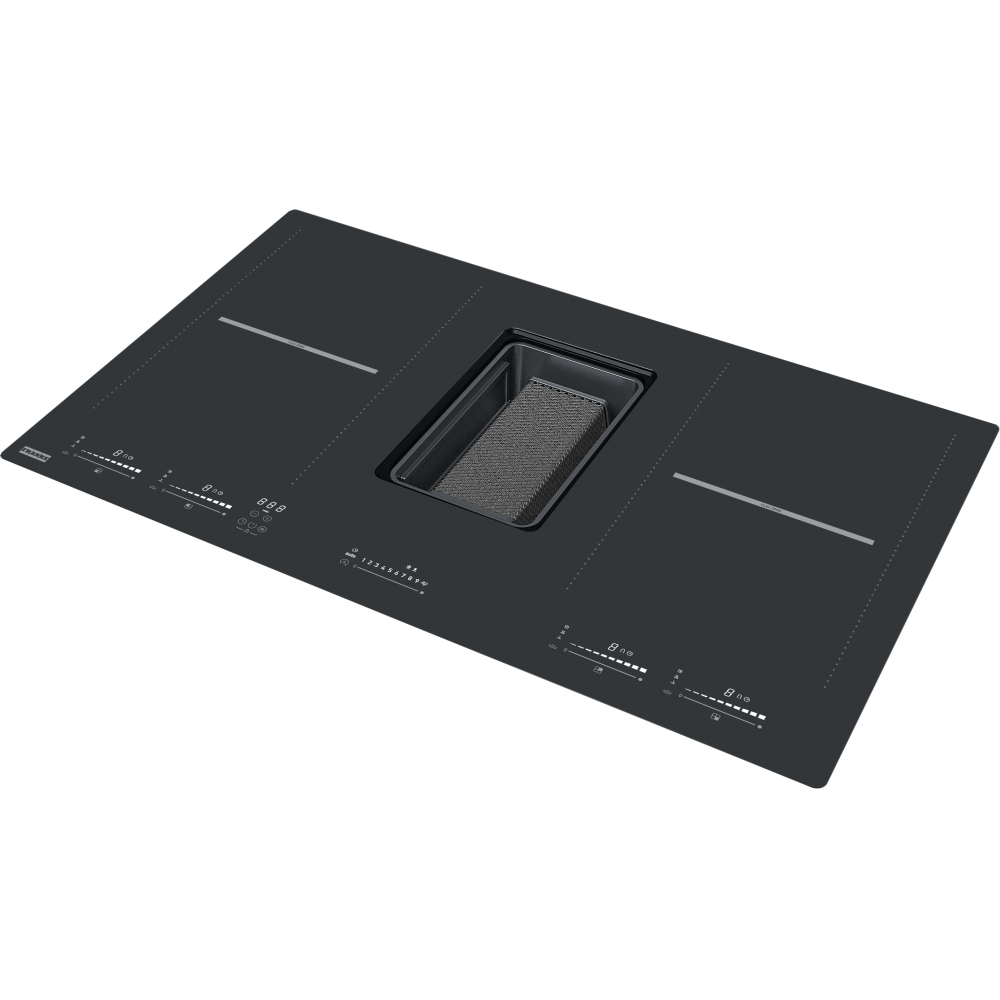

Mythos 2gether Hob Extractor FMY 839 HI

340.0597.249
Energy class
 A+++

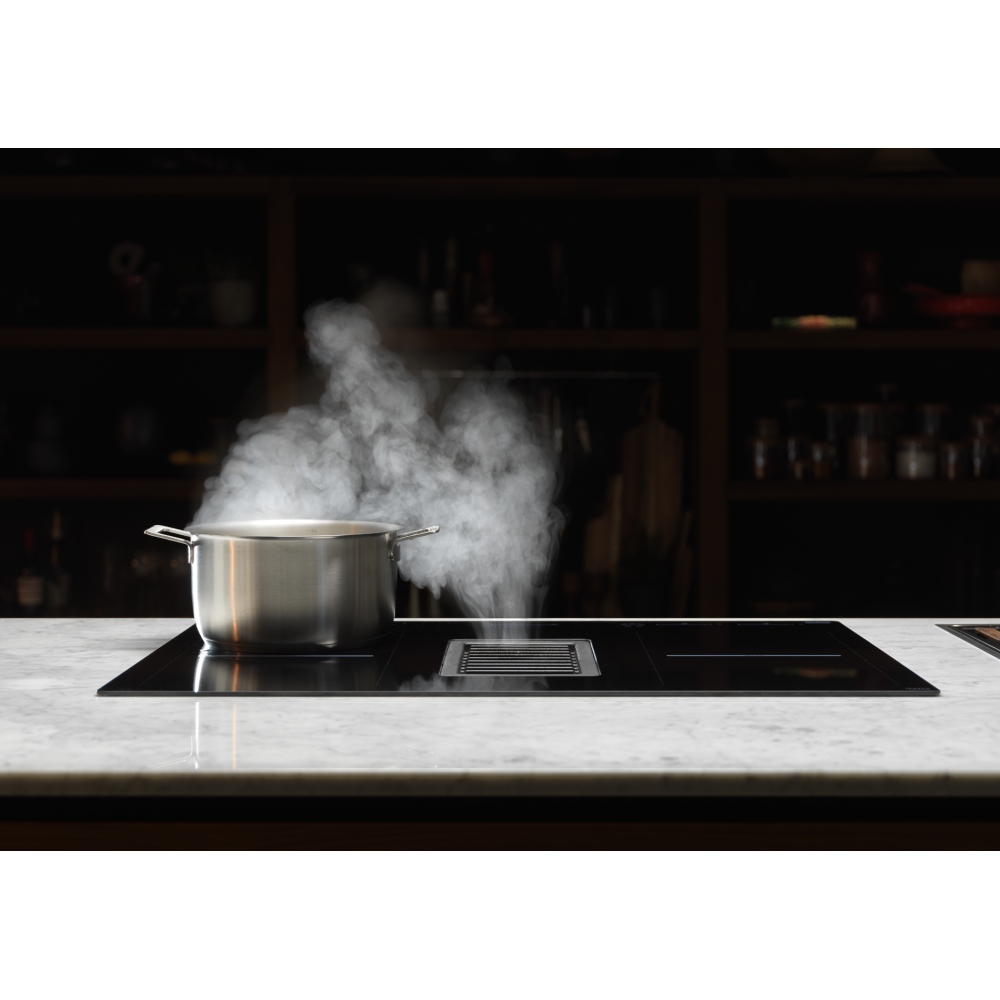

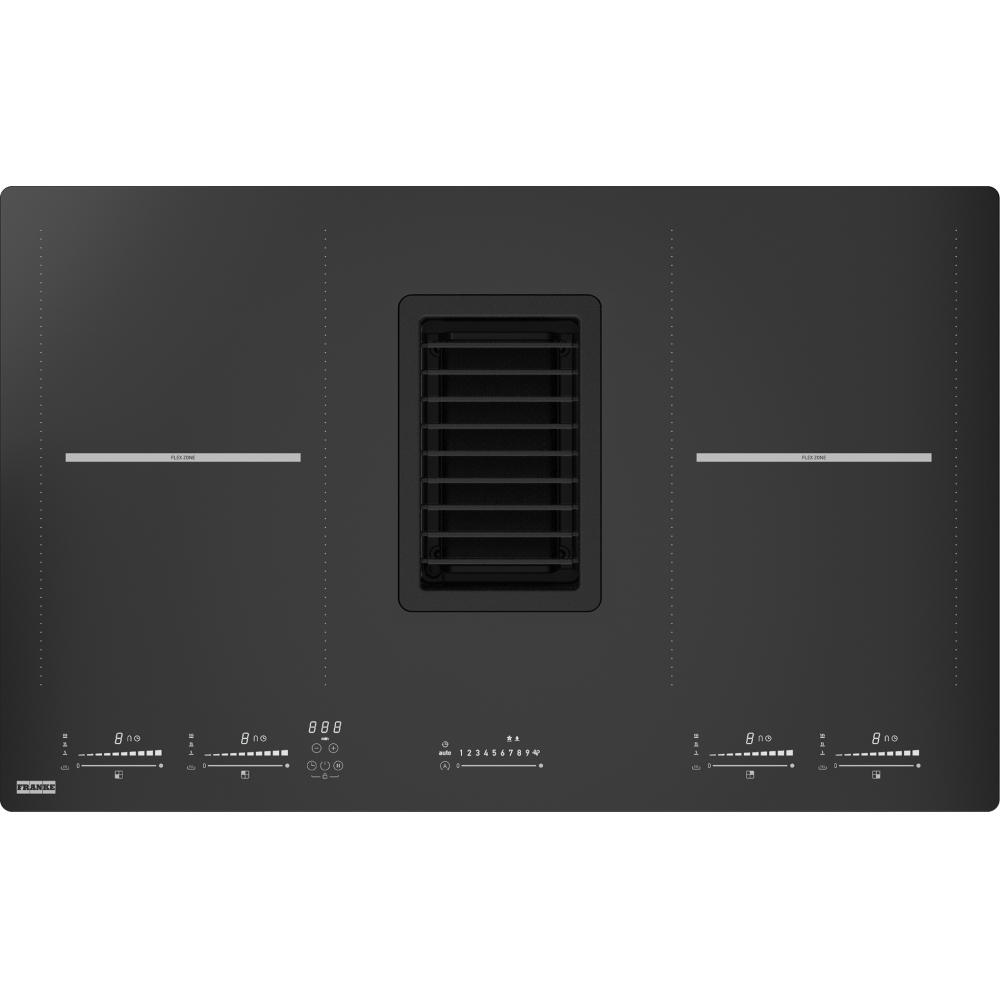

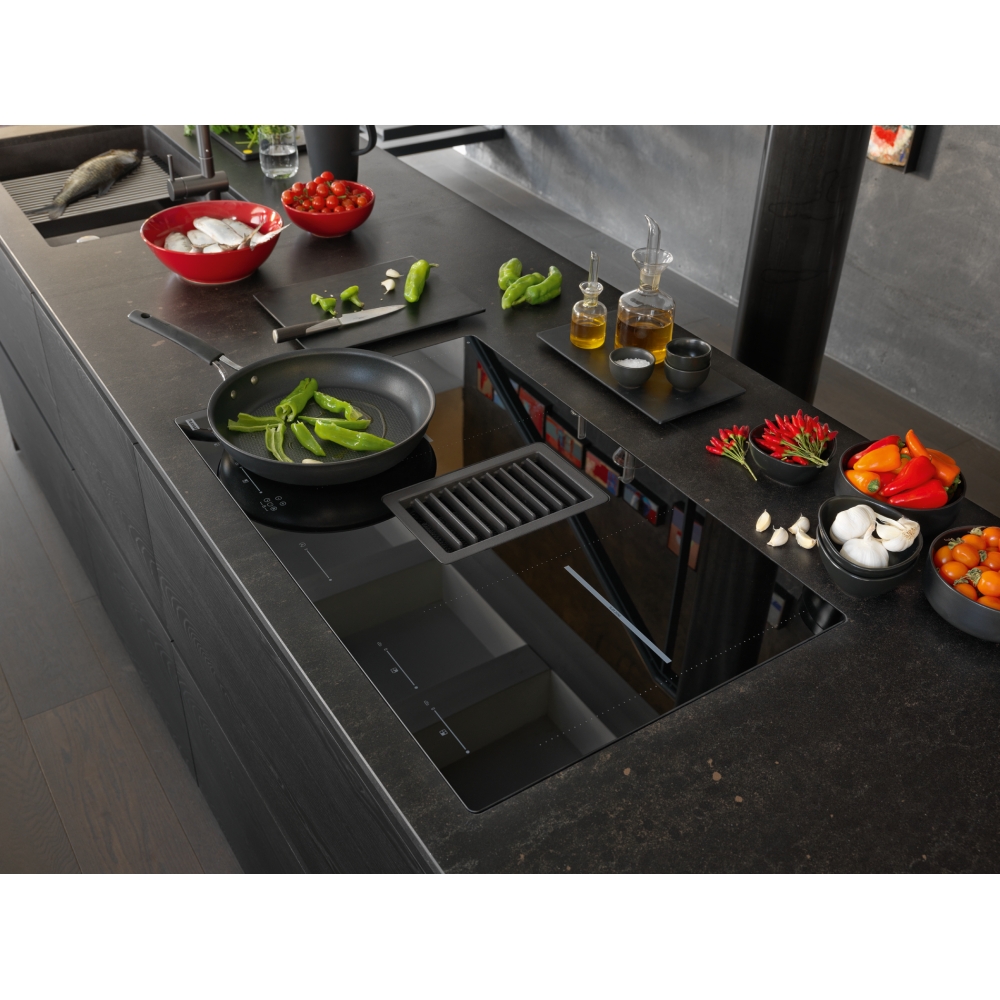

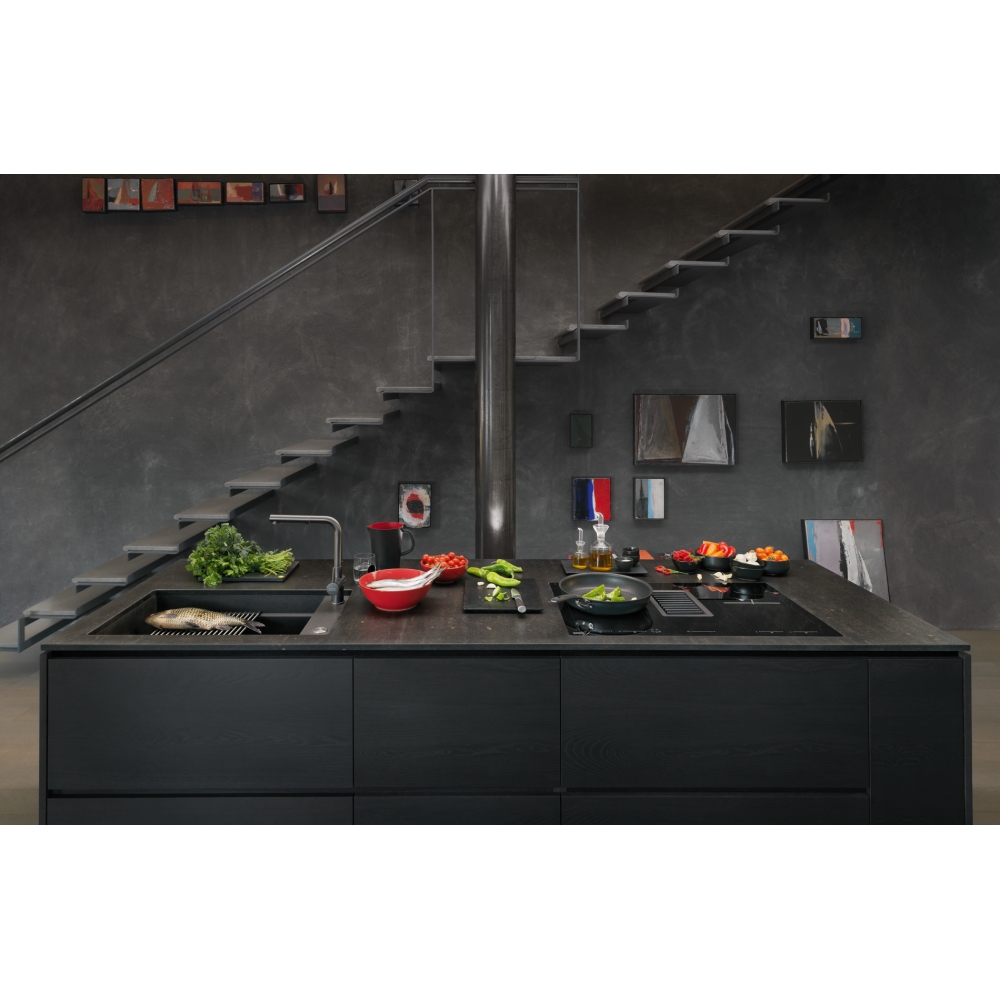

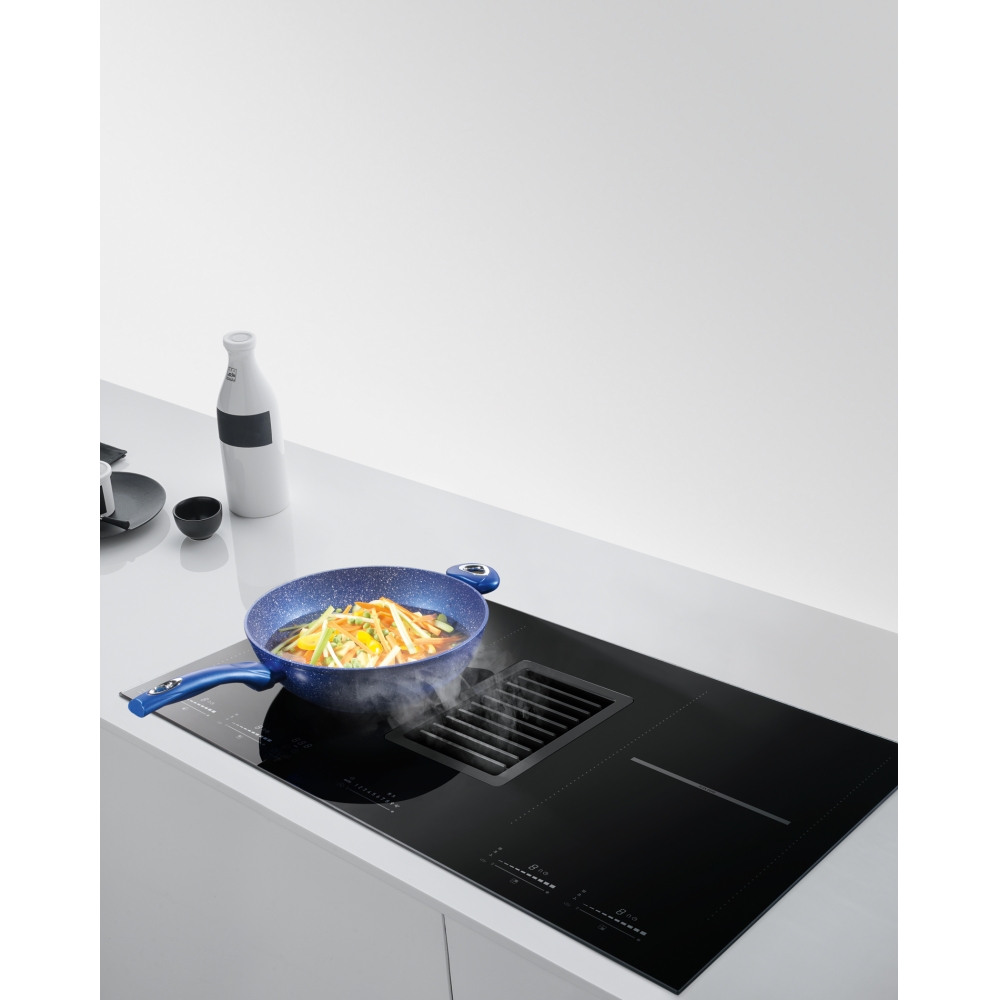

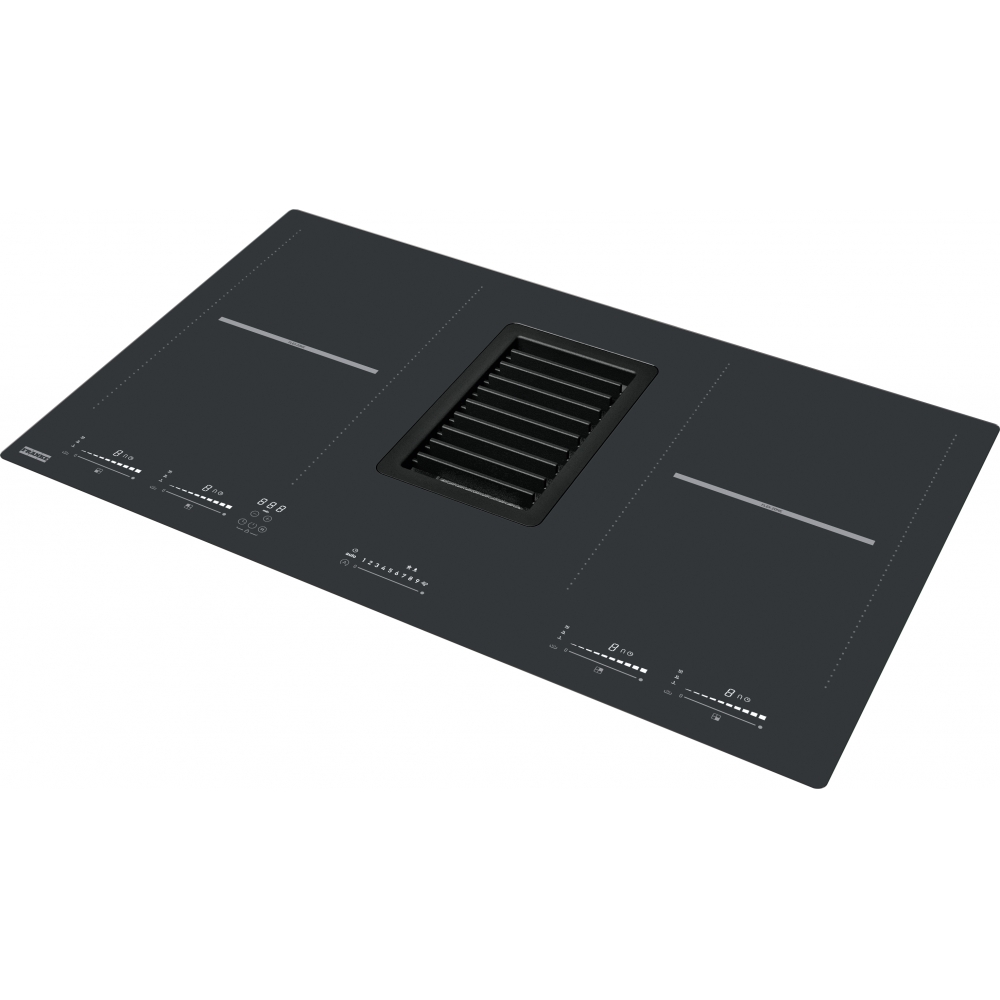

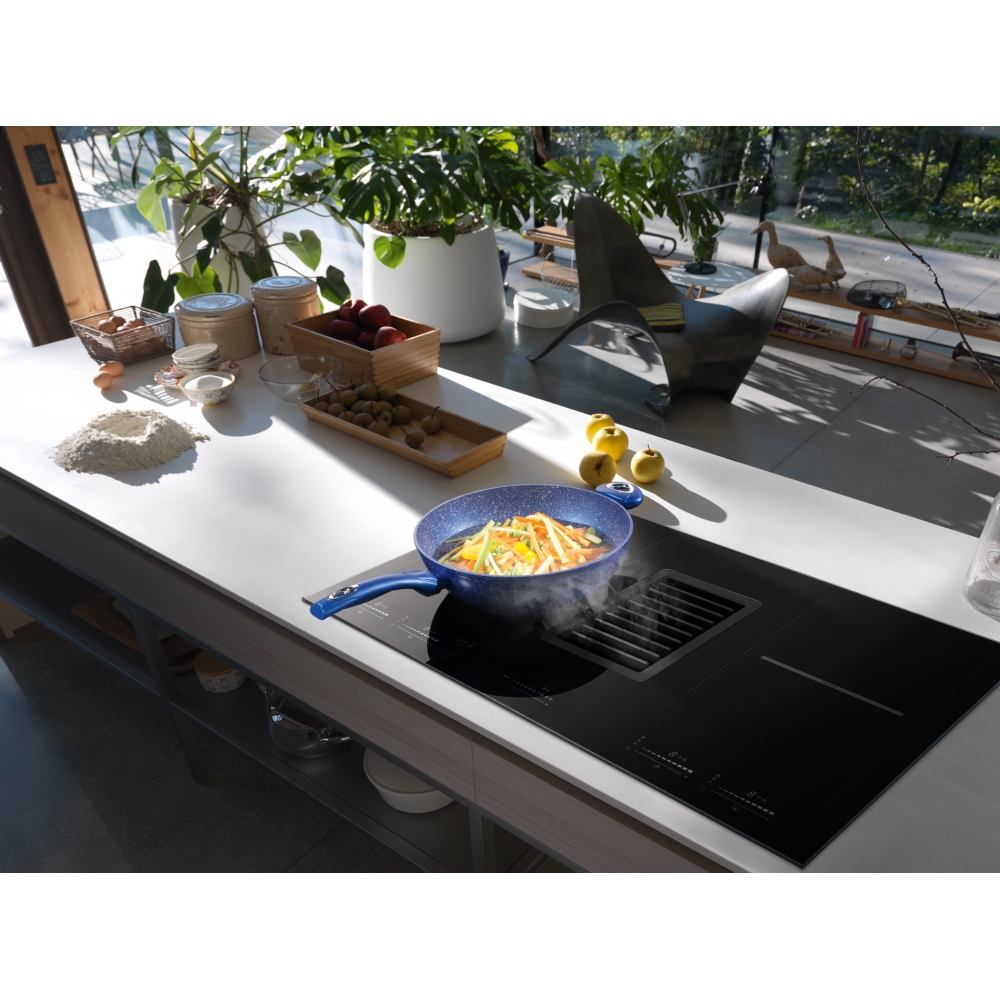

Mythos FMY 839 HI 2.0, black glass with cast iron grid, 830mm wide. This completely integrated hob extractor is the ideal choice for any modern minimalistic kitchen. The hob extracts vapours using a constant flow of air pressure, discreetly reducing unwanted odours and condensation within any kitchen. The Mythos 2gether sits flush with the worktop, making it easy to slide your pans across each zone. The compact motor design saves space in the cabinet, and if fully waterproof, offering complete safety. Energy efficiency class A+. 4 induction zones. Bridge cooking zones. 3 power levels plus 2 intensive levels, with digital sliding touch display. Easy installation. Water collector & waterproof motor. Bain Marie function. Childproof lock. Enameled cast iron grid. Hood automatically turns on when hob is in use. NB The Mythos 2gether requires a separate Aspiration Kit (for ducting out) or Recirculation Kit (if fitting in recirculatory mode) which is available in either 6cm or 10cm high depending on the height of your plinth.

Product Information

Product Information

EAN/UPC 7612985753333
Color Black
Finish Glass
Power limitation No

Properties

Control Flex touch slider
Digit color White
Cooking zone 4
Waterproof Yes
Timer Yes
Booster 4
Stop&Go Yes
Hob/hood connection No
Color back_LEDind_display N/A
Grease filtering efficiency cl B
Type of filter Aluminium
Charcoal filter No

Performance

Speed 1
Flow (m³h) 245
Press. max 290
Watt 35
Noise level (db) 51
Speed 2
Flow (m³h) 285
Press. max 370
Watt 45
Noise level (db) 55
Speed 3
Flow (m³h) 350
Press. max 525
Watt 60
Noise level (db) 57
Speed 8
Flow (m³h) 505
Press. max 550
Watt 125
Noise level (db) 65
Speed BOOST1
Flow (m³h) 550
Press. max 555
Watt 140
Noise level (db) 66
Speed BOOST
Flow (m³h) 700
Press. max 560
Watt 220
Noise level (db) 72

Dimensions

Commercial dimension 83X52

Installation

Filter typology Hobextractor

Energy specifications

Total power 7.4
Voltage & frequency 220-240V 50-60Hz

Product Identification

Product brand FRANKE
Product family Mythos
Model range MYTHOS

Product specifications

Bridge Yes
Safety lock Yes
Energy efficiency class A+++
Keep warm Yes
Melting Yes

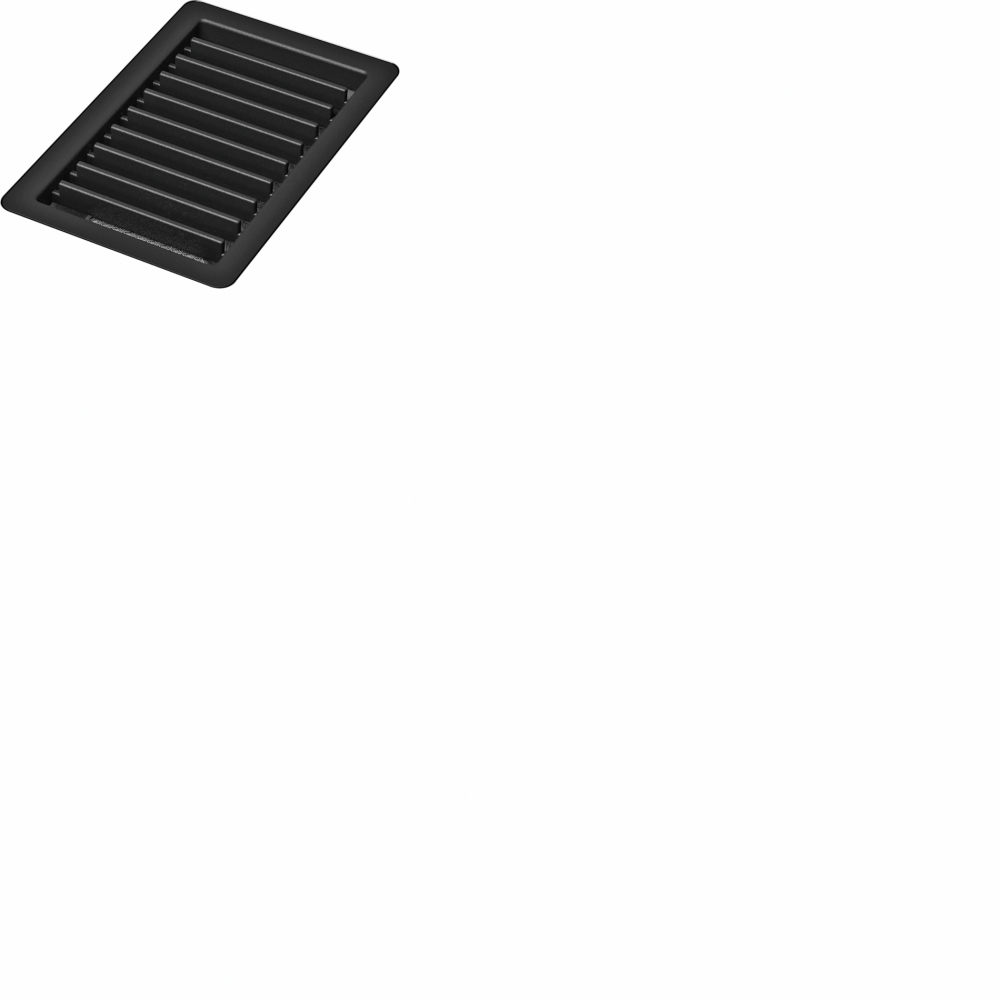

Grill Yes

Downloads

Fact Sheet PDF

Energy label 340.0597.249 001 PDF (3 MB)

Exploded Drawing 340.0597.249 001 PDF (2 MB)

Exploded Drawing 340.0597.249 002 PDF (9 MB)

Installation Manual 340.0597.249 001 PDF (5 MB)

Product Fiche 340.0597.249 001 PDF (2 MB)

Technical Drawing 340.0597.249 001 PDF (1 MB)

User Manual 340.0597.249 001 PDF (21 MB)

User Manual 340.0597.249 002 PDF (30 MB)

User Manual 340.0597.249 003 PDF (30 MB)

User Manual 340.0597.249 004 PDF (38 MB)

Wiring Diagram 340.0597.249 001 PDF (183 KB)
